AI-800 Android UHF Eight-Channel Fixed Reader
Eight-port fixed UHF RFID reader running Android 12. Impinj E710, up to 1100 tags/s, with Ethernet, Wi-Fi, Bluetooth and 4G.
- System
- Android 12 · RK3568 quad-core
- Reader chip
- Impinj E710
- Antenna ports
- 8 × SMA female
- Wireless
- Wi-Fi · Bluetooth · 2G / 3G / 4G
- Wired
- RJ45 · USB 3.0 · RS232 · GPIO · HDMI
Overview
The AI-800 is a fixed UHF RFID reader with Android 12 built in. It runs on an RK3568 2.0 GHz quad-core processor with 2 GB RAM and 16 GB storage (4 GB + 64 GB optional). Its Impinj E710 engine reads EPC Gen2 / ISO 18000-6C tags at up to 1100 tags per second, with anti-collision polling across eight SMA antenna ports.
It connects over 10/100 Ethernet, Wi-Fi, Bluetooth and 2G / 3G / 4G, and has RS232, two USB 3.0 Type-A ports (one OTG), isolated GPIO and HDMI output up to 4K. RSSI, module temperature detection and antenna connection protection are supported.
The aluminum alloy housing runs on 12–24 V DC, PoE or PoE+. Applications are developed in Java on Android 12 with the terminal SDK and Eclipse or Android Studio.
- Antenna ports
- 8
- Tags per second
- 1100
- Max. RF output
- 33dBm
- Operating system
- Android12
Specifications
RFID
- Reader chip
- Impinj E710
- Protocol
- EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
- Frequency
- 865–868 MHz
920–925 MHz
902–928 MHz - Output power
- 2 W (33 dBm)
- Power accuracy
- ±1 dB
- Power flatness
- ±0.2 dB
- Receiver sensitivity
- < −84 dBm
- Multi-read rate
- Up to 1100 tags/s
- Read range
- Up to 25 m*
- Tag RSSI
- Supported
- Module temp. detection
- Supported
- Antenna connection protection
- Supported
- Antennas
- Various, e.g. 6 dBic, 9 dBic
- Antenna interface
- 8 × SMA female, 50 Ω
Performance & interfaces
- Operating system
- Android 12
- CPU
- RK3568, 2.0 GHz quad-core
- RAM + ROM
- 2 GB + 16 GB (optional 4 GB + 64 GB)
- Interfaces
- RS232, RJ45, USB 3.0 Type-A, USB 3.0 Type-A (OTG)
- Video output
- HDMI Type-A, up to 4K
- GPIO
- 2 inputs, 2 outputs, isolated
- Max. baud rate
- 115200 bps
- Cooling
- Air cooling
Data communication
- Ethernet
- RJ45, 10/100 Base-T
- WLAN
- 802.11a/b/g/n/ac, external antenna (SMA)
- Bluetooth
- v2.1, v4.1
- 2G
- GPRS 900 / 1800 MHz
- 3G
- WCDMA Band 1
CDMA EVDO Rev.A 800 MHz
TD-SCDMA Band 34 / 39 - 4G
- TDD-LTE Band 38 / 39 / 40 / 41
FDD-LTE Band 1 / 3
Power & physical
- Input voltage
- 12–24 V DC
- Power supply
- DC 12 V
PoE (802.3af, 13 W)
PoE+ (802.3at, 25.5 W) - Operating current
- 800 mA ±5% @ 12 V DC
- Standby current
- < 55 mA
- Housing
- Aluminum alloy

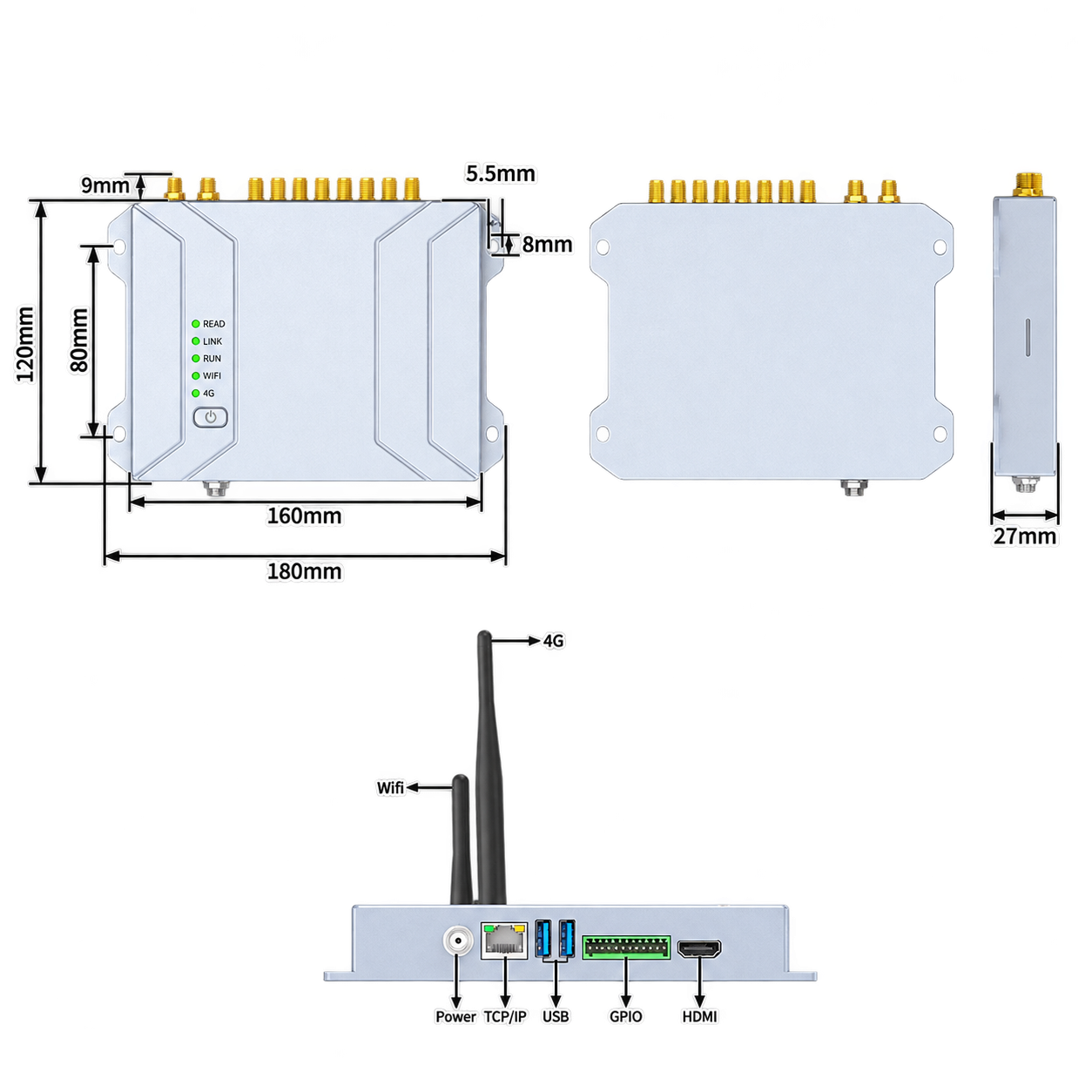

- Dimensions
- 180 × 129 × 27 mm
- Weight
- 600 g
Environmental
- Operating temp.
- −25 °C to +65 °C
- Storage temp.
- −40 °C to +85 °C
- Operating humidity
- 10–95%
Development
- Operating system
- Android 12
- SDK
- Terminal software development kit
- Language
- Java
- Tools
- Eclipse / Android Studio
* Depends on the antenna, tag and environment. USB OTG mode is switched in the system properties.

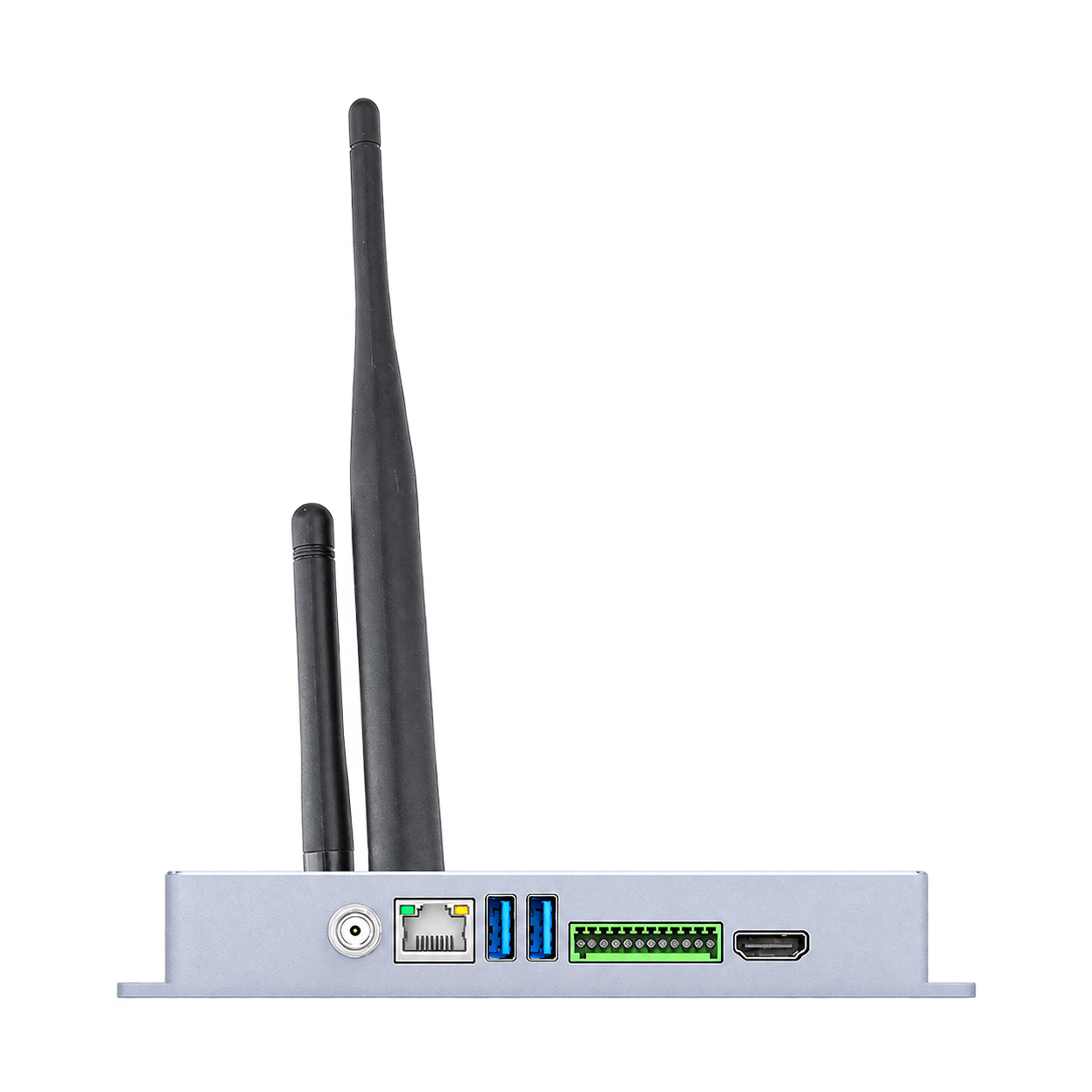

Connections
Ports, terminal pins, indicators and power button.
GPIO terminal, 12-pin
| Pin | Signal | Function | Android reference |
|---|---|---|---|
| 1 | RS232-TXD | Device RXD | /dev/ttys3 (pins 1–3) |
| 2 | GND | Ground | |
| 3 | RS232-RXD | Device TXD | |
| 4 | GND | Ground | |
| 5 | DC+ | Power output | Regulated DC output; can also be used as input, with no protection |
| 6 | DC− | Power ground | |
| 7 | GPO-1 | GPIO output 1 | gpio-96; active low, inactive high; output is Vcc |
| 8 | GPO-2 | GPIO output 2 | gpio-97; active low, inactive high; output is Vcc |
| 9 | GPIO GND | Signal ground | |
| 10 | GPI-1 | GPIO input 1 | gpio-103; default high, low when shorted |
| 11 | GPI-2 | GPIO input 2 | gpio-104; default high, low when shorted |
| 12 | GPIO GND | Signal ground |

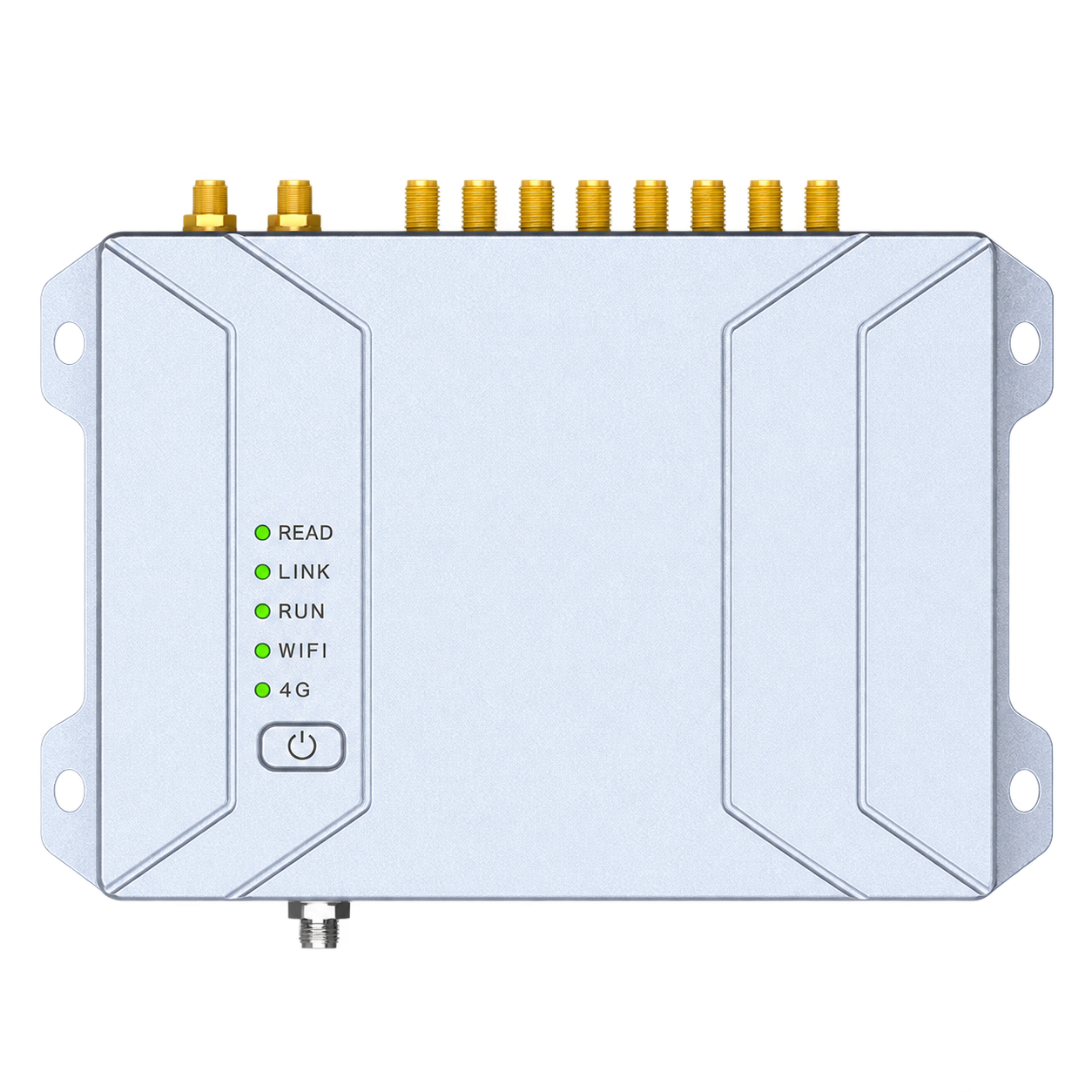

Indicators & buzzer
| Name | Function | Android reference |
|---|---|---|
| 4G | Lights when connected to the internet | |
| WIFI | Lights when connected to the internet | |
| Run | System running | |
| Link | Active low, inactive high | gpio-19 |
| Read | Active low, inactive high | gpio-20 |
| Beep (buzzer) | Active low, inactive high | gpio-21 |
Power button
- Short press
- Sleep.
- Hold 3 s
- Shutdown prompt.
- Hold over 8 s
- Shuts down directly.
- Power connected
- Powers on automatically.
Compare
Fixed readers with a built-in OS.
| Reader | Built-in OS | Chip | Read speed | Antenna ports |
|---|---|---|---|---|
| 4-port Android | Android 12 | Impinj E710 | 1100 tags/s | 4 × SMA female |
| 8-port Android (AI-800) | Android 12 | Impinj E710 | 1100 tags/s | 8 × SMA female |
| 8-port Linux | Linux 4.4 | MU914 | 200 tags/s | 8 × RP-TNC female |

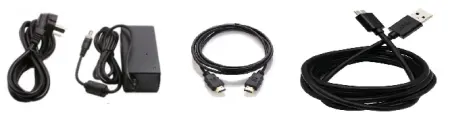

In the box
- Reader× 1
- Power adapter + plug× 1 set
- HDMI cable× 1
- Type-A USB 3.0 cable× 1
Applications
Warehouse management
Forklift management
Asset tracking
Laundry management
Smart cabinets
Garbage management
