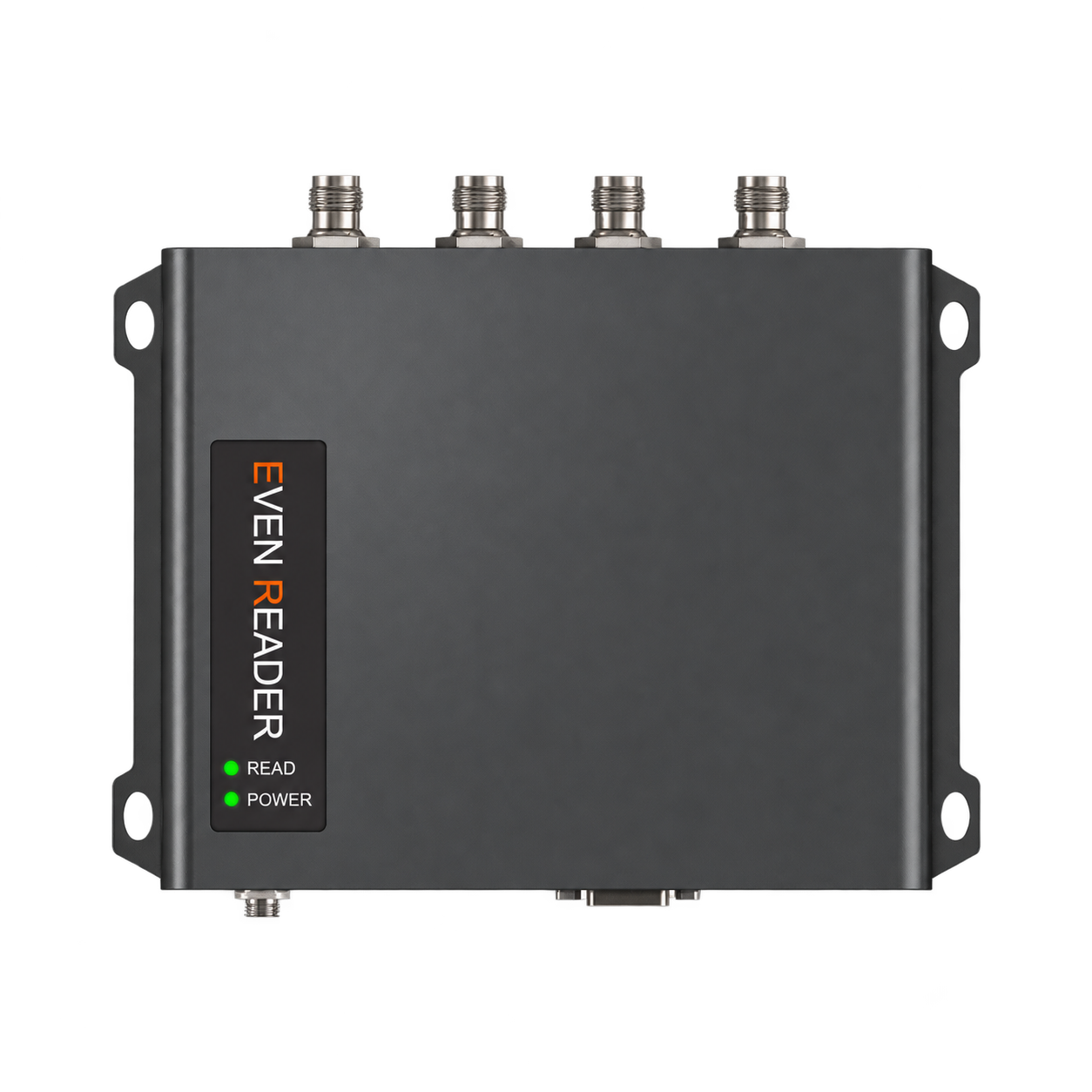

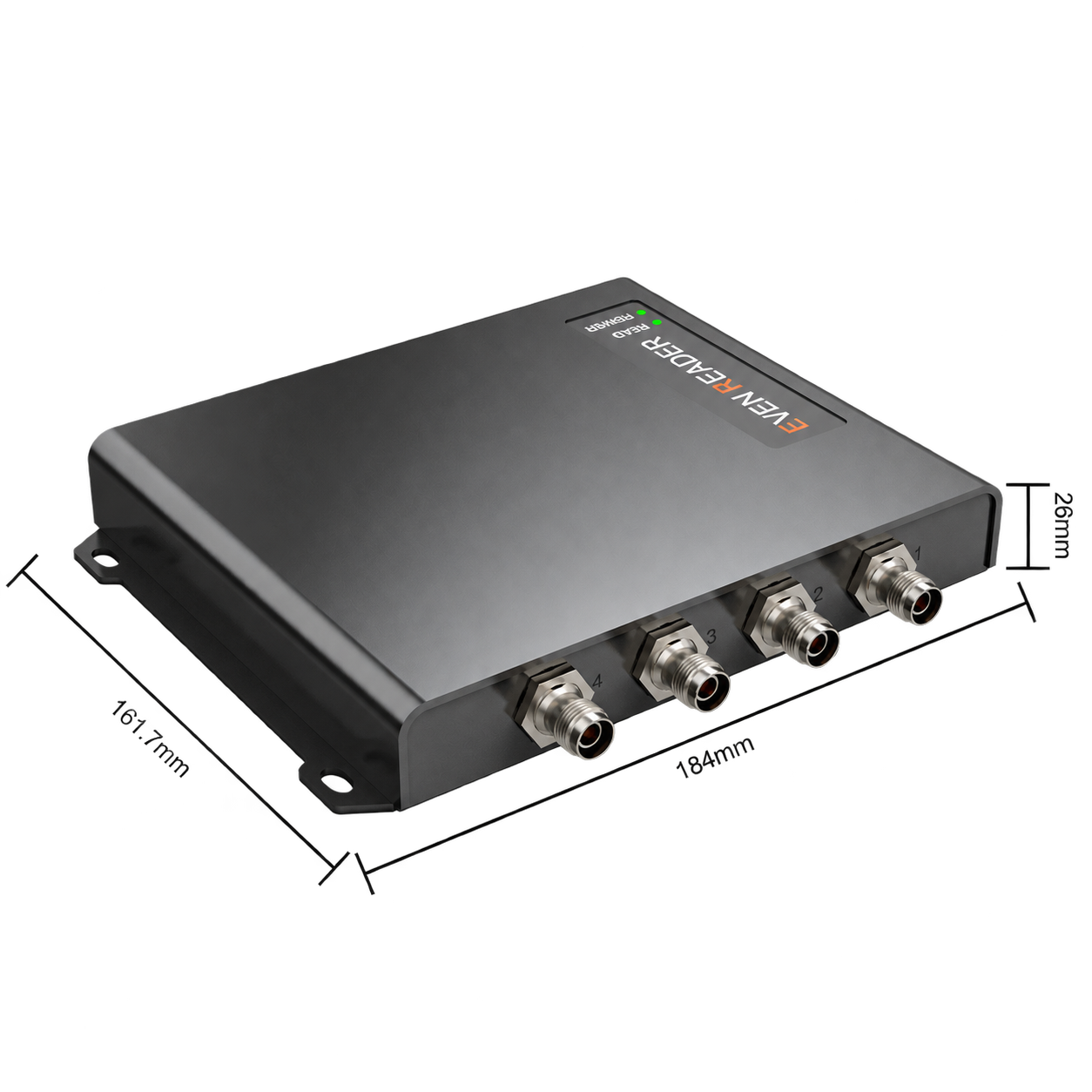

AI-815 four-channel fixed reader, front with four antenna connectors

UHF fixed readers

AI-815 E710 UHF Four-Channel Fixed Reader

Four-port fixed UHF RFID reader with an Impinj E710. Up to 1100 tags/s and 0–33 dBm, with USB, RS232, TCP/IP and GPIO.

Reader chip
Impinj E710
Frequency
865–868 MHz (EU) · 902–928 MHz (US)
Antenna ports
4 × RP-TNC female
Interfaces
USB · RS232 · TCP/IP · GPIO
Protection
IP55, die-cast aluminum
Request a quote Full specifications

Overview

The AI-815 is a fixed UHF RFID reader built on the Impinj E710, with four RP-TNC antenna ports. It reads ISO 18000-6C (EPC Gen2) tags at up to 1100 tags per second and 0–25 m, polling the four antenna ports with anti-collision. RF output is adjustable from 0 to 33 dBm.

USB, RS232, TCP/IP and GPIO (2 optocoupler-isolated inputs and 2 outputs) are standard, and PoE can be customized. The reader caches 600 tags at 128-bit EPC and supports RSSI to identify tag signal distance.

The die-cast aluminum housing is rated IP55 and the reader runs on 12 V, 2 A. The SDK supports C#, Java (JNI and Linux), VC and Android, and firmware can be upgraded remotely.

Antenna ports
4
Tags per second
1100
Max. RF output
33dBm
Read range*
0–25m

Specifications

RFID

Reader chip
Impinj E710
Frequency
865–868 MHz (EU)
902–928 MHz (US)
Protocol
ISO 18000-6C (EPC Gen2)
RF output power
0–33 dBm, adjustable
Inventory speed
1100 tags/s
Data cache
600 tags @ 128-bit EPC
Read range
0–25 m*
Anti-collision
Multi-antenna port polling
Working modes
Active, answer
RSSI
Supported, identifies tag signal distance

Interfaces & power

Standard
USB, RS232, TCP/IP, GPIO
Customizable
PoE (mode A / mode B, af)
Antenna ports
4 × RP-TNC female
GPIO
2 inputs, 2 outputs
Power supply
12 V, 2 A
Current
0.5–1.2 A

Physical & environmental

Dimensions
184 × 161.7 × 26 mm
Net weight
0.6 kg
Housing
Die-cast aluminum
Protection
IP55
Operating temp.
−10 °C to +60 °C
Storage temp.
−20 °C to +75 °C
Package size
200 × 255 × 100 mm
Gross weight
1.3 kg

Software

SDK
Demo software, API, samples, user manual
Languages
C#, Java-JNI, Java-Linux, VC, Android
Firmware
Remote upgrade

* Depends on the antenna, tag and application.

Connections

Ports, dimensions and pin assignments.

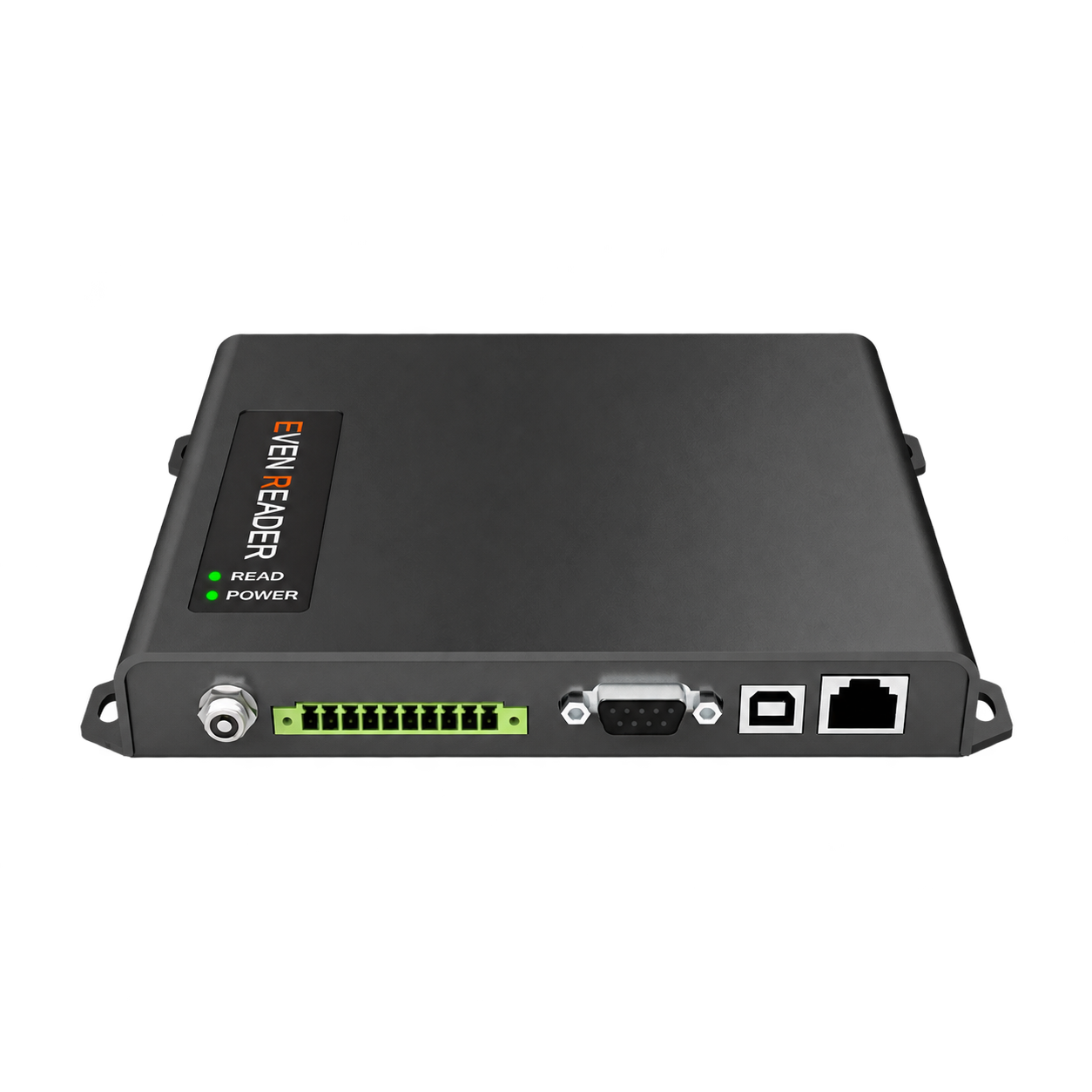

AI-815 ANT1 to ANT4 connectors and DC, GPIO, RS232, USB and RJ45 ports
ANT1–ANT4, DC, GPIO, RS232, USB and RJ45

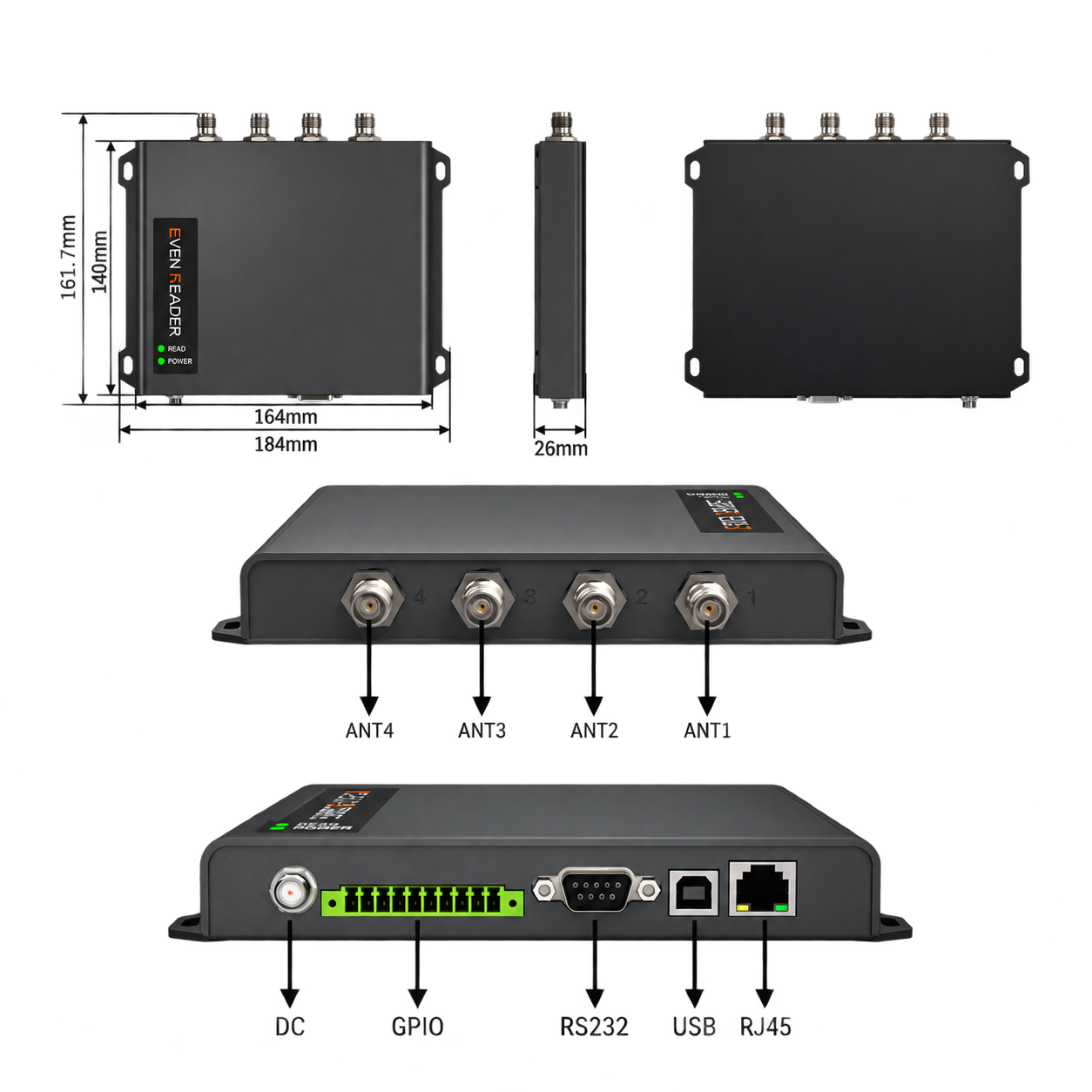

AI-815 dimensions, 184 × 161.7 × 26 mm
184 × 161.7 × 26 mm

GPIO, 10-pin

1 · Output1R
Optocoupler-isolated output 1+
2 · Output1L
Optocoupler-isolated output 1−
3 · Output2R
Optocoupler-isolated output 2+
4 · Output2L
Optocoupler-isolated output 2−
5 · GND
Signal ground
6 · Input1+
Optocoupler-isolated input 1+
7 · Input1−
Optocoupler-isolated input 1−
8 · Input2+
Optocoupler-isolated input 2+
9 · Input2−
Optocoupler-isolated input 2−
10 · GND
Signal ground

RS232, 9-pin

1 · NC
Reserved
2 · RXD
RS232 data input
3 · TXD
RS232 data output
4 · NC
Reserved
5 · GND
Ground
6–9 · NC
Reserved

Compare

Fixed readers with more antenna ports.

ReaderAntenna portsConnector
4-port (AI-815)4RP-TNC female
8-port8SMA female
16-port16SMA female
