AI-F6D6 UHF Android Integrated Reader
UHF RFID reader with a built-in 12 dBi linear antenna and Android 12. Reads up to 15 m, with 4G, Wi-Fi, USB 3.0 and HDMI output.
- System
- Android 12 · RK3568 quad-core
- Antenna
- Internal 12 dBi, linear polarization
- Read range
- 0–15 m
- Connectivity
- 4G · Wi-Fi · USB 3.0 · HDMI
- Protection
- IP65, die-cast aluminum
Overview
The AI-F6D6 is a UHF RFID reader with a built-in 12 dBi linearly polarized antenna and Android 12. It reads ISO 18000-6C (EPC Gen2) tags at 0–15 m, with RF output up to 33 dBm (adjustable) and RSSI support for identifying tag signal distance.
It runs on an RK3568 2.0 GHz quad-core processor with 2 GB RAM and 16 GB storage (4 GB + 64 GB optional). 4G supports multiple countries' standards, and the HDMI output connects a display screen. USB 3.0 Type-A and USB 3.0 OTG are standard; RS232, RJ45, isolated GPIO and Bluetooth are optional.
The die-cast aluminum housing is rated IP65 and runs on 12 V, 2 A. Applications are developed in Java with Eclipse or Android Studio, and firmware can be upgraded online.
- Internal antenna
- 12dBi
- Read range
- 0–15m
- Max. RF output
- 33dBm
- Protection
- IP65
Specifications
RFID
- Frequency
- 902–928 MHz (US)
865–868 MHz (EU) - Protocol
- ISO 18000-6C (EPC Gen2)
- RF output power
- Max. 33 dBm, adjustable
- Internal antenna
- 12 dBi
- Polarization
- Linear
- Read range
- 0–15 m
- RSSI
- Supported
System
- Operating system
- Android 12
- CPU
- RK3568, 2.0 GHz quad-core
- RAM + ROM
- 2 GB + 16 GB (optional 4 GB + 64 GB)
- Firmware
- Online upgrade
Data communication
- Standard
- USB 3.0 Type-A
USB 3.0 Type-A (OTG)
HDMI Type-A, up to 4K
4G (EC25-E standard, other modules to order; built-in SIM)
Wi-Fi* - Optional
- RS232
RJ45
GPIO (2 inputs, 2 outputs, isolated)
Bluetooth
Development
- SDK
- Demo software, API, examples, user manuals
- Language & tools
- Java, Eclipse / Android Studio
Physical
- Power supply
- 12 V, 2 A
- Housing
- Die-cast aluminum
- Dimensions
- 415 × 415 × 67 mm
- Net weight
- 3.1 kg
Environmental
- Protection
- IP65
- Operating temp.
- −10 °C to +55 °C
- Storage temp.
- −20 °C to +75 °C
* Wi-Fi is listed as standard in the specification table and as optional in the interface definitions. Confirm when ordering.

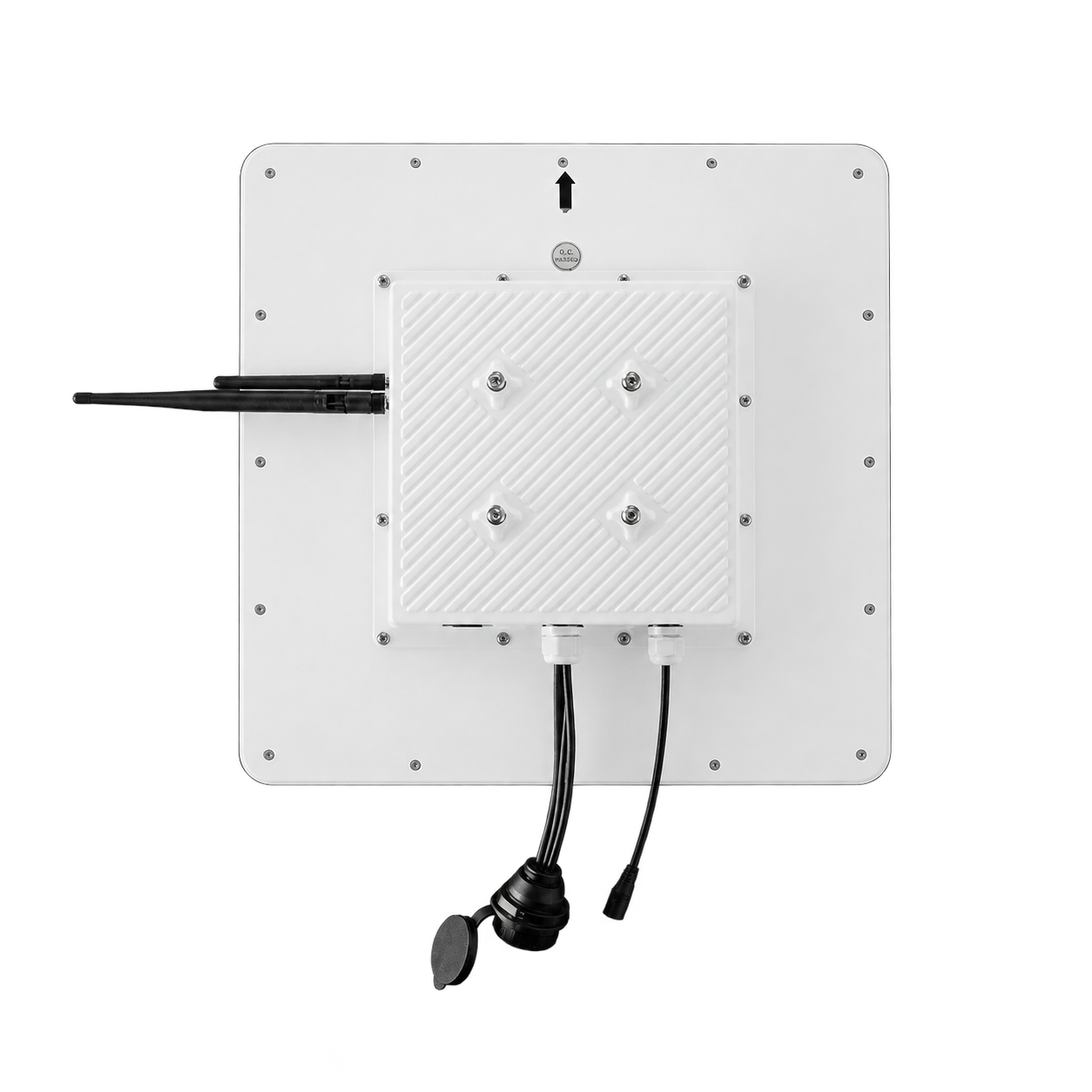

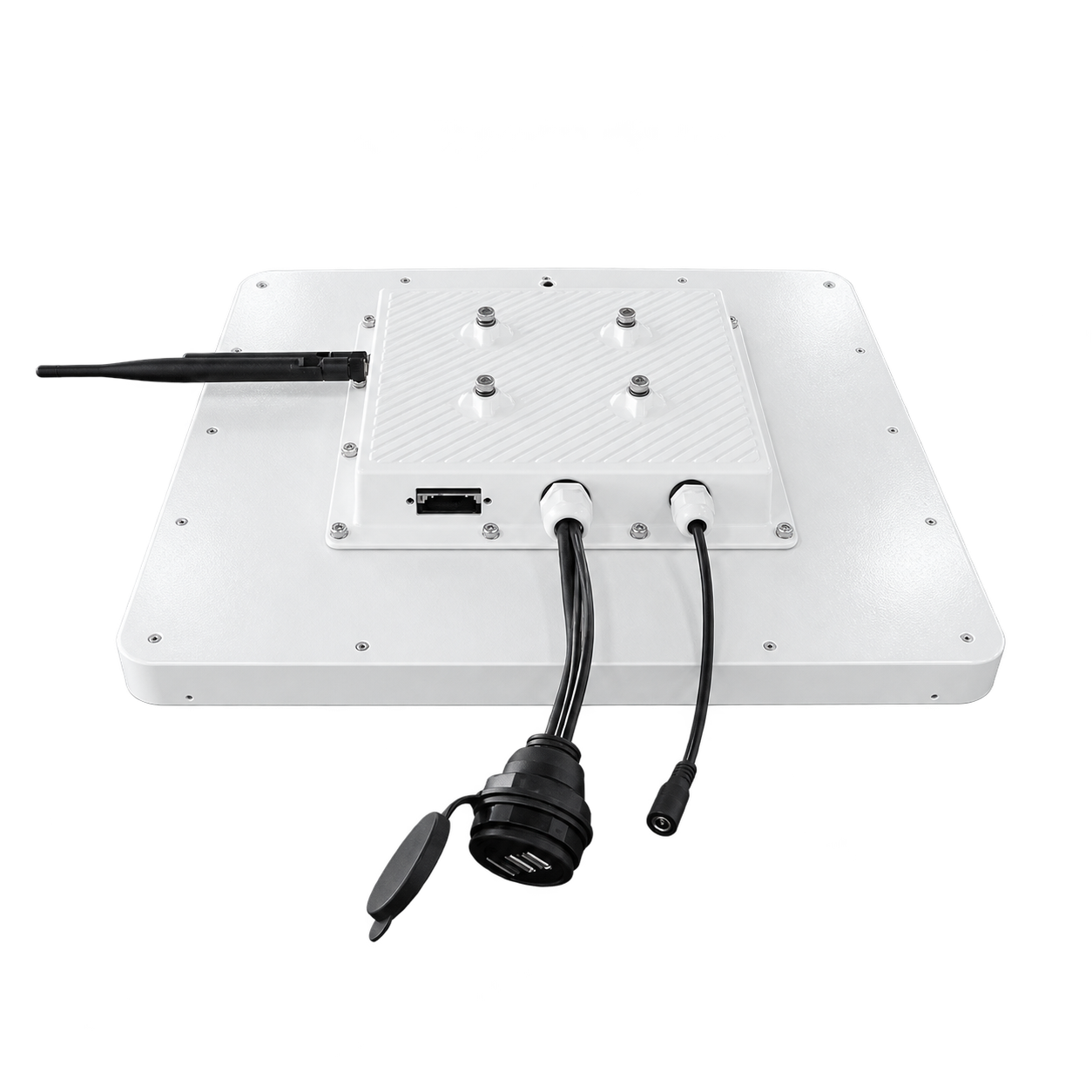

Connections
Leads, indicator and buzzer.
DC power
- Red
- 12 V
- Black
- GND
Indicator & buzzer
- Read light · GPIO-20
- Low: greenHigh: red
- Buzzer · GPIO-21
- Low: on
High: off
Compare
Android 12 readers.
| Reader | Type | Antenna |
|---|---|---|
| AI-F6D6 | Integrated reader | Internal 12 dBi |
| AI-400 | Fixed reader, Impinj E710 | 4 × SMA female |
| AI-800 | Fixed reader, Impinj E710 | 8 × SMA female |
Applications
Vehicle management
Asset anti-theft
Weighing scales
Animal management
Personnel management
Requesting a quote
Send us these details and we'll reply with pricing and lead time.
- Frequency bandUS 902–928 or EU 865–868 MHz
- 4G & optionsCountry for the 4G module; Wi-Fi, RS232, RJ45, GPIO or Bluetooth
- QuantityNumber of readers
