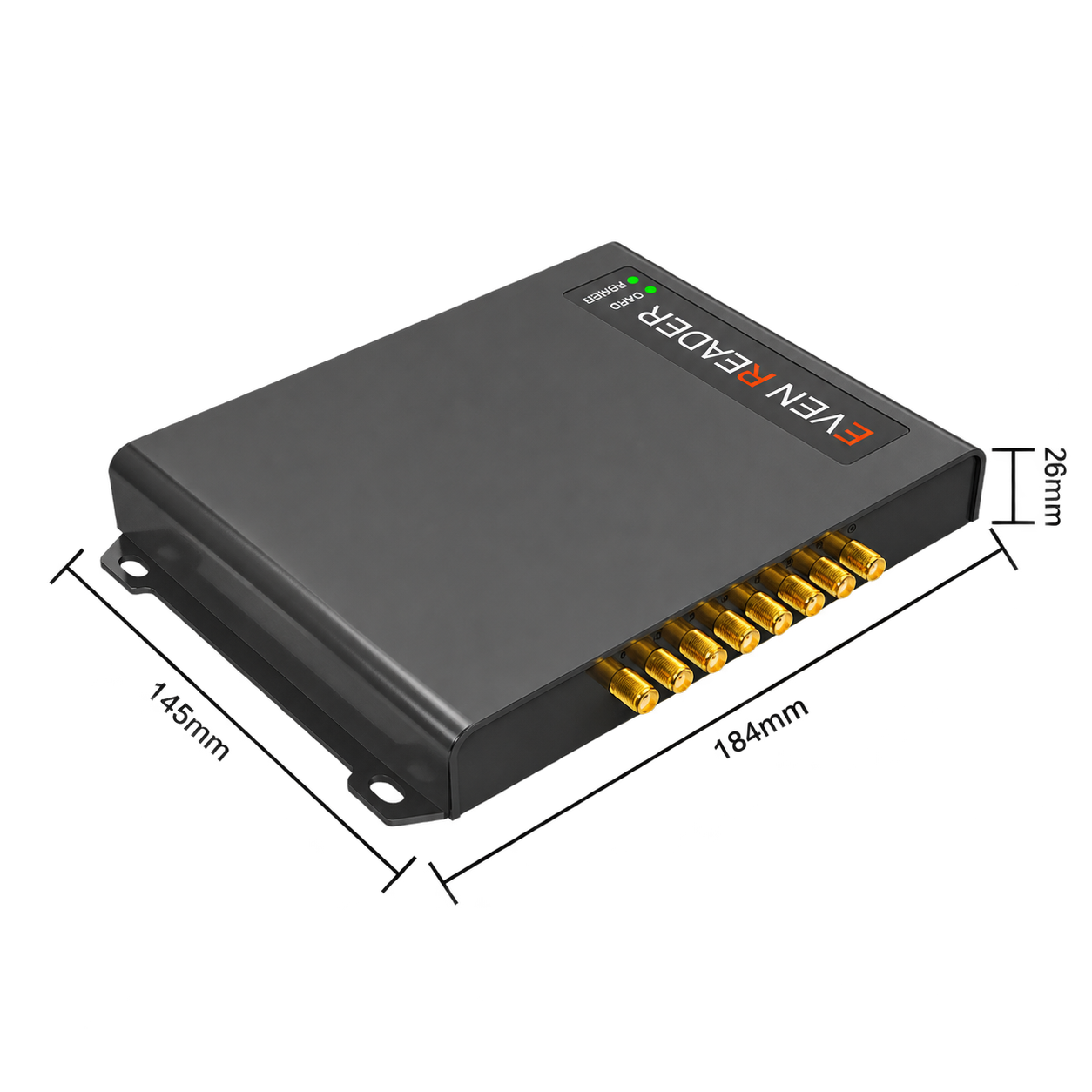

AI-816 E710 UHF Eight-Channel Fixed Reader

Eight-port fixed UHF RFID reader with an Impinj E710. Up to 1100 tags/s and 0–33 dBm, with USB, RS232, TCP/IP and GPIO.

Reader chip
Impinj E710
Frequency
865–868 MHz (EU) · 902–928 MHz (US)
Antenna ports
8 × SMA female
Interfaces
USB · RS232 · TCP/IP · GPIO
Protection
IP55, die-cast aluminum
Request a quote Full specifications

Overview

The AI-816 is a fixed UHF RFID reader built on the Impinj E710, with eight SMA antenna ports. It reads ISO 18000-6C (EPC Gen2) tags at up to 1100 tags per second and 0–25 m, polling the eight antenna ports with anti-collision. RF output is adjustable from 0 to 33 dBm.

USB, RS232 and TCP/IP are standard, with GPIO (2 optically isolated inputs and 2 outputs), and PoE is optional. The reader caches 600 tags at 128-bit EPC and supports RSSI to identify tag signal distance.

The die-cast aluminum housing is rated IP55 and the reader runs on 12 V, 2 A. The SDK supports C#, Delphi, Java, Python, VB and other languages, and firmware can be upgraded online.

Antenna ports
8
Tags per second
1100
Max. RF output
33dBm
Read range*
0–25m

Specifications

RFID

Reader chip
Impinj E710
Frequency
865–868 MHz (EU)
902–928 MHz (US)
Protocol
ISO 18000-6C (EPC Gen2)
RF output power
0–33 dBm, adjustable
Inventory speed
1100 tags/s
Data cache
600 tags @ 128-bit EPC
Read range
0–25 m*
Anti-collision
Multi-antenna port polling
Working modes
Active, answer
RSSI
Supported, identifies tag signal distance

Interfaces & power

Standard
USB, RS232, TCP/IP
Optional
PoE (mode A / mode B, af)
Antenna ports
8 × SMA female
GPIO
2 inputs, 2 outputs
Power supply
12 V, 2 A
Current
0.5–1.2 A

Physical & environmental

Dimensions
147 × 184 × 26 mm
Net weight
0.6 kg
Housing
Die-cast aluminum
Protection
IP55
Operating temp.
−10 °C to +60 °C
Storage temp.
−20 °C to +75 °C
Package size
200 × 255 × 100 mm
Gross weight
1.3 kg

Software

SDK
Demo software, API, examples, user manual
Languages
C#, Delphi, Java, Python, VB and others
Firmware
Online upgrade

* Depends on the antenna, tag and application.

Connections

Ports and pin assignments.

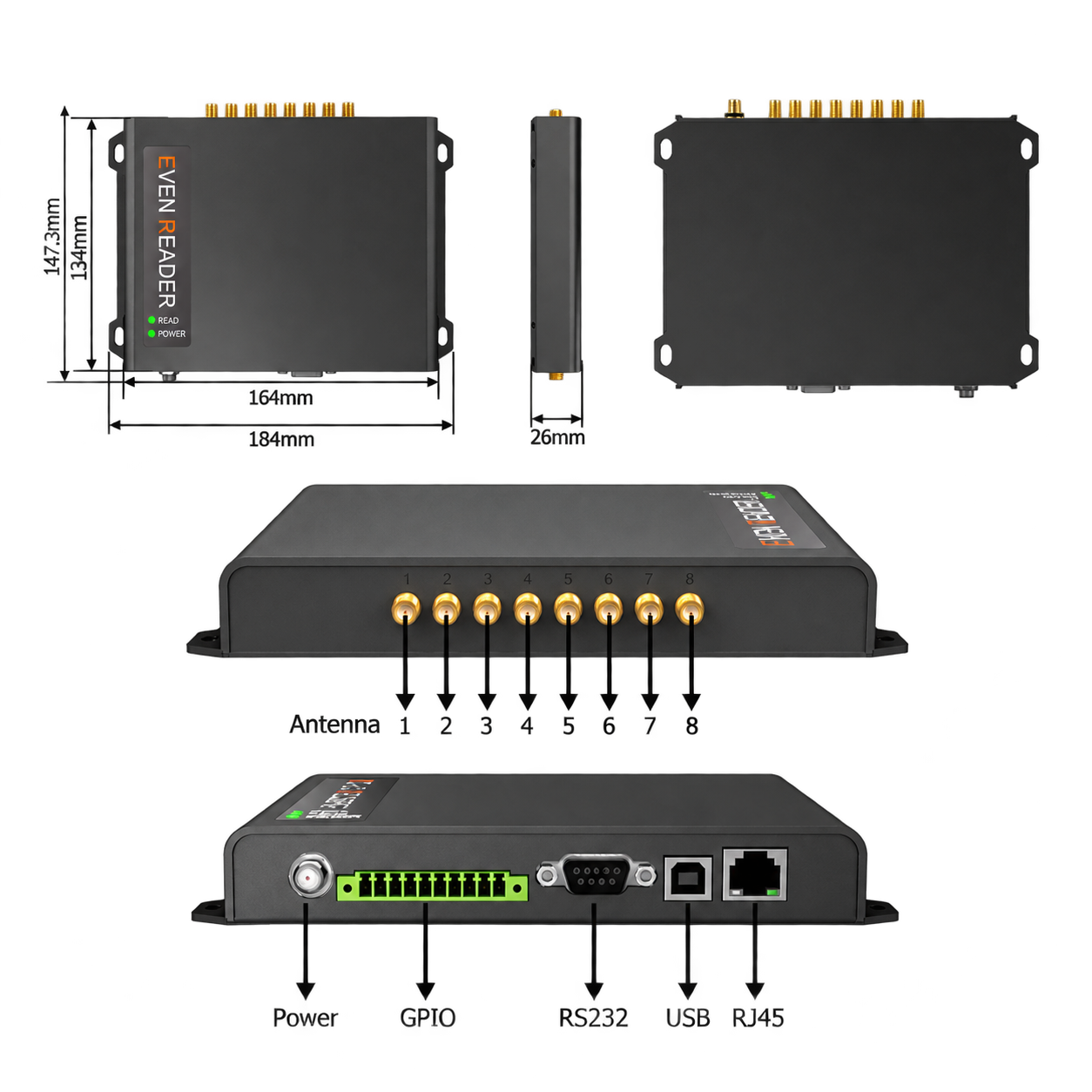

AI-816 dimensions, antenna ports 1 to 8 and DC, GPIO, RS232, USB and RJ45 ports
Antennas 1–8, power, GPIO, RS232, USB and RJ45

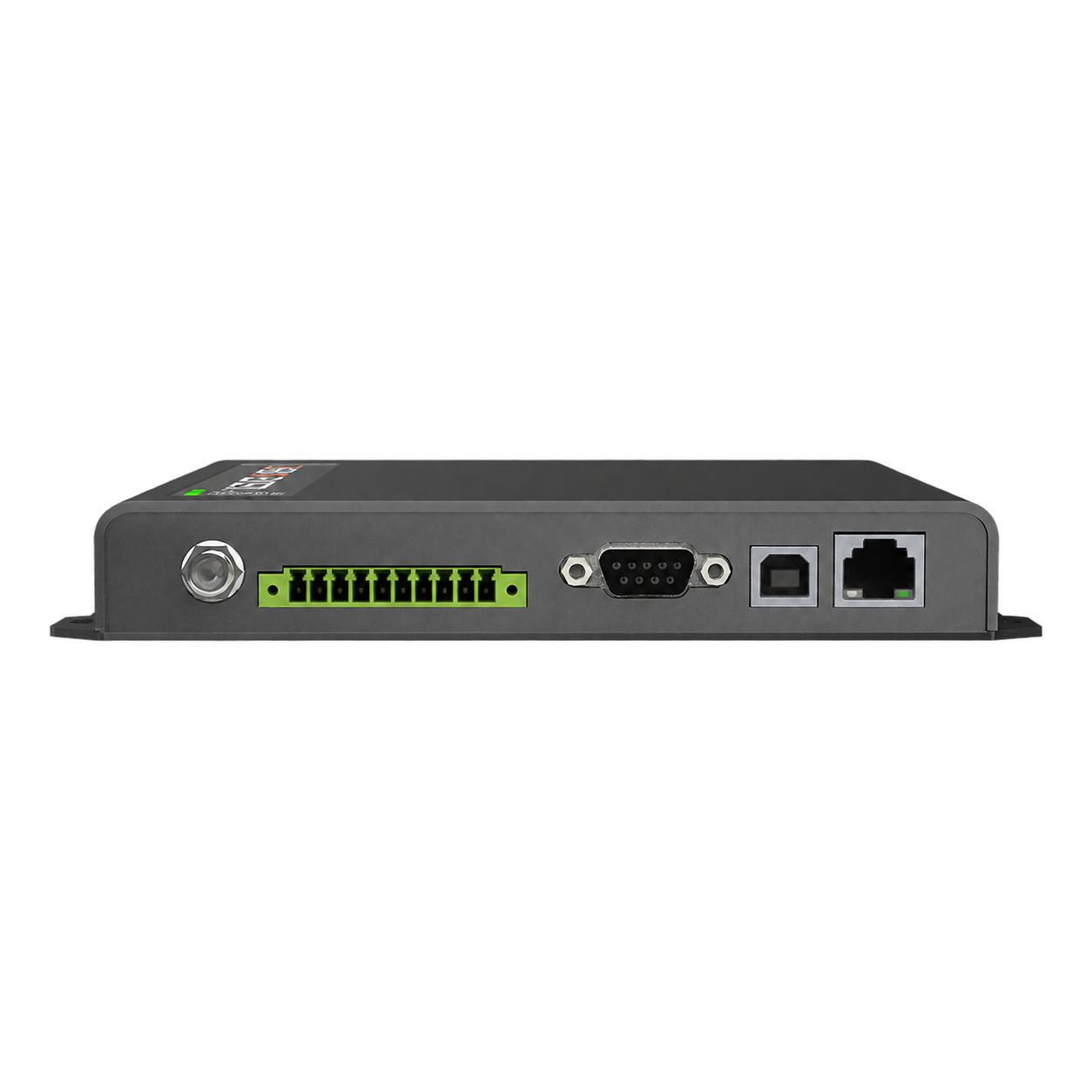

AI-816 interface panel: DC power, 10-pin GPIO, RS232, USB and RJ45
Interface panel

GPIO, 10-pin

1 · Output1R
Isolated output 1+
2 · Output1L
Isolated output 1−
3 · Output2R
Isolated output 2+
4 · Output2L
Isolated output 2−
5 · GND
Signal ground
6 · Input1+
Isolated input 1+
7 · Input1−
Isolated input 1−
8 · Input2+
Isolated input 2+
9 · Input2−
Isolated input 2−
10 · GND
Signal ground

RS232, 9-pin

1 · NC
Reserved
2 · RXD
RS232 data input
3 · TXD
RS232 data output
4 · NC
Reserved
5 · GND
Ground
6–9 · NC
Reserved

Compare

Fixed readers with other port counts.

ReaderAntenna portsConnector
4-port (AI-815)4RP-TNC female
8-port (AI-816)8SMA female
16-port16SMA female
