UHF anti-metal tags
AI-G9802 UHF Flexible Anti-metal Tag

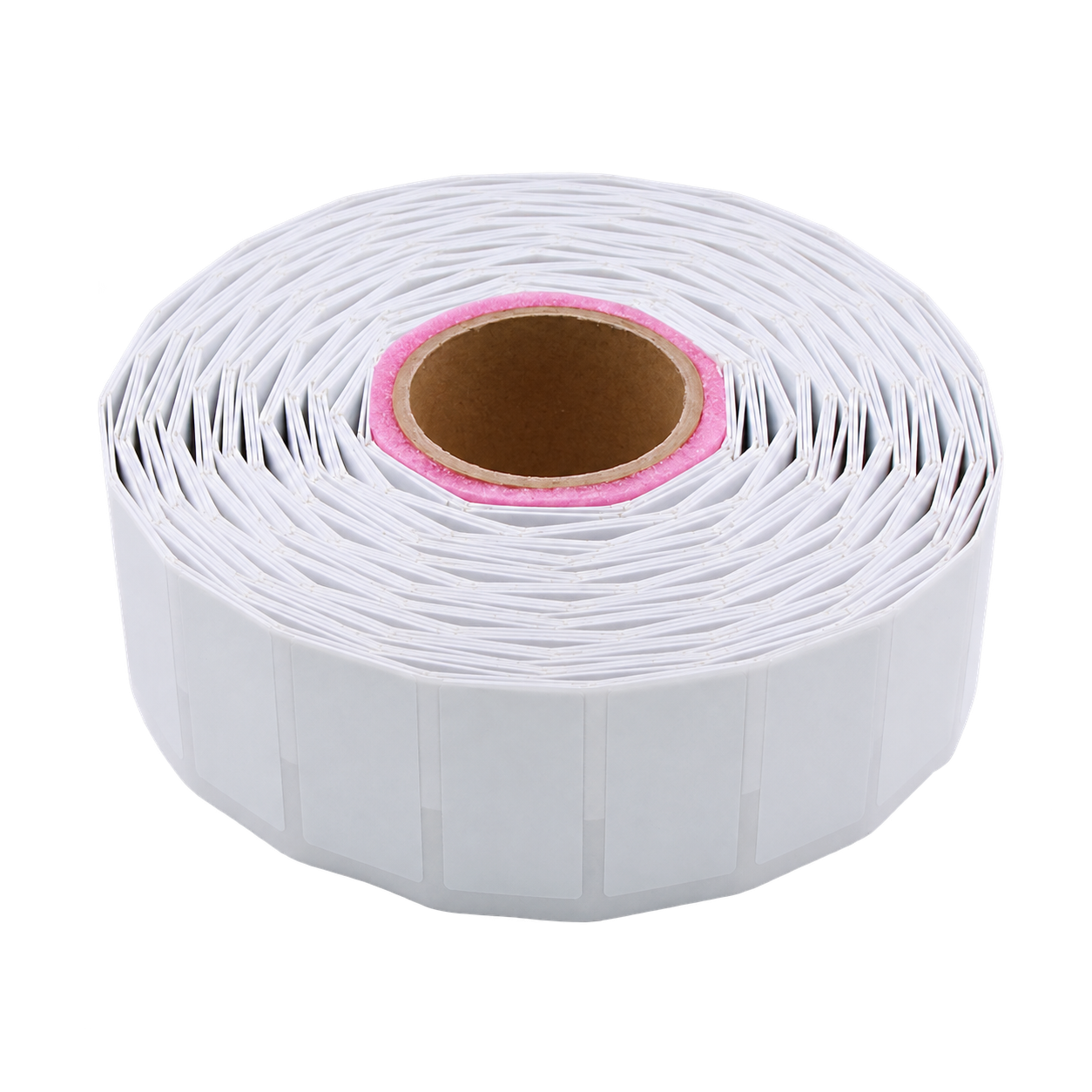

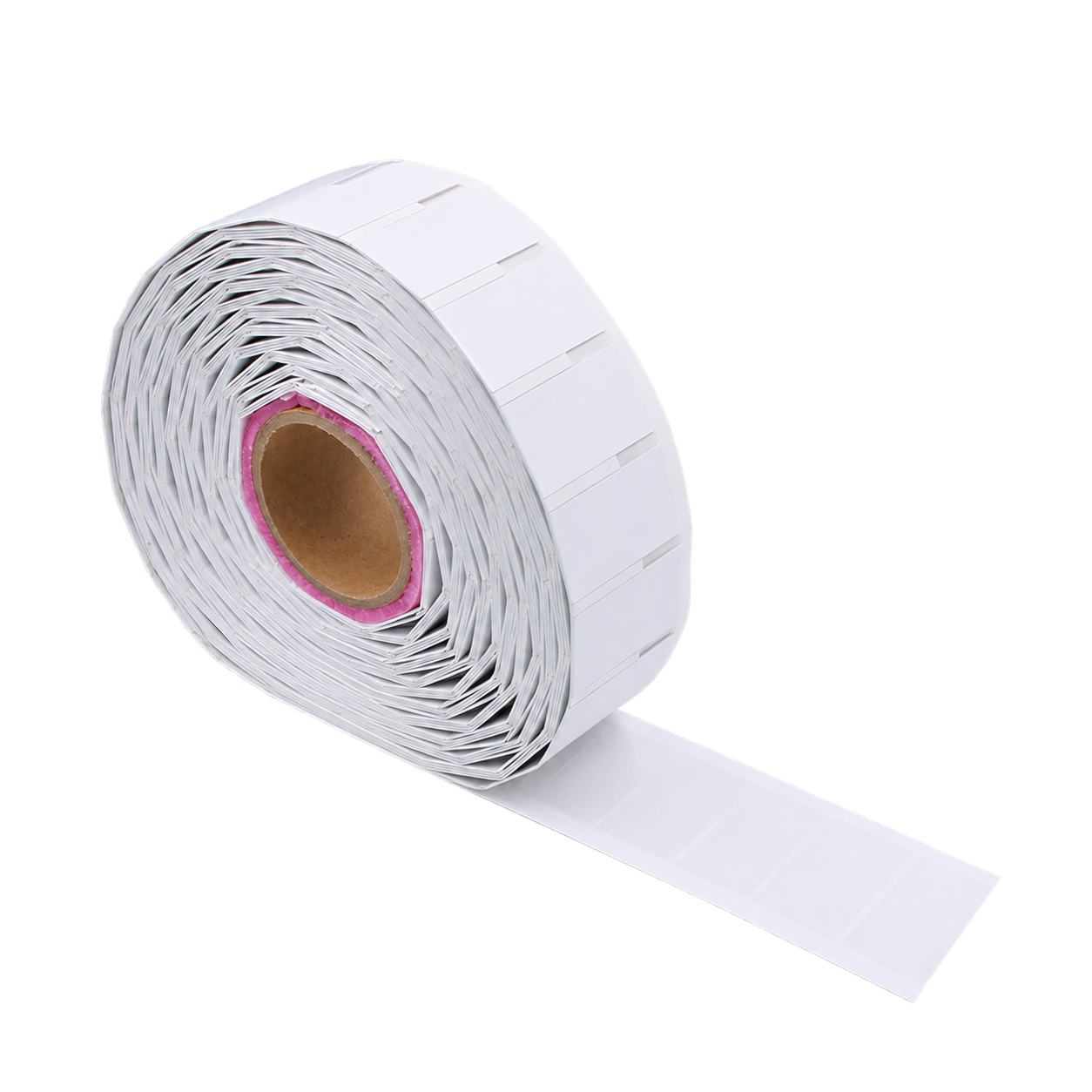

Flexible UHF RFID tag with metal resistance, for attaching directly to metal surfaces. NXP UCODE 9XE chip, 60 × 25 or 65 × 35 mm, EU or US band.
- Chip
- NXP UCODE 9XE
- Protocol
- EPC Gen2 / ISO 18000-6C
- Frequency
- 865–868 MHz (EU) · 902–928 MHz (US)
- Sizes
- 60 × 25 mm · 65 × 35 mm
- Material
- PET, flexible
Overview
The AI-G9802 is a flexible UHF RFID tag with metal resistance: it can be attached directly to metal surfaces. It works to ISO 18000-6C (EPC Gen2) at 865–868 MHz (EU) or 902–928 MHz (US), reading at 0–9 m and writing at 0–2 m, depending on reader type and environment.
The NXP UCODE 9XE chip has a 96-bit read/write EPC and a 48-bit read-only TID. It can be rewritten 100,000 times and keeps data for 10 years. The tag is PET, in 60 × 25 mm or 65 × 35 mm.
- Max. read range*
- 9m
- Max. write range*
- 2m
- Rewrite cycles
- 100,000
- Data retention
- 10years
Specifications
RF & protocol
- Frequency
- 865–868 MHz (EU)
902–928 MHz (US) - Air protocol
- EPC Gen2 / ISO 18000-6C
- Chip
- NXP UCODE 9XE
- Working mode
- Read / write
- Read range
- 0–9 m*
- Write range
- 0–2 m*
Memory
- EPC
- 96 bit, read / write
- TID
- 48 bit, read only
- Unique TID
- 48 bit, read only
- Rewrite
- 100,000 times
- Data retention
- 10 years
Physical
- Model
- AI-G9802
- Dimensions
- 60 × 25 mm
65 × 35 mm - Material
- PET
- Mounting
- Directly onto metal
Environmental
- Operating temp.
- −20 °C to +80 °C
- Storage temp.
- −10 °C to +70 °C
- Operating humidity
- ≤ 80%
* Depends on reader type and working environment.
Sizes
Both drawings are at the same scale.
Applications
Office supplies management
Charging cabinet management
Tool management
Metal equipment management

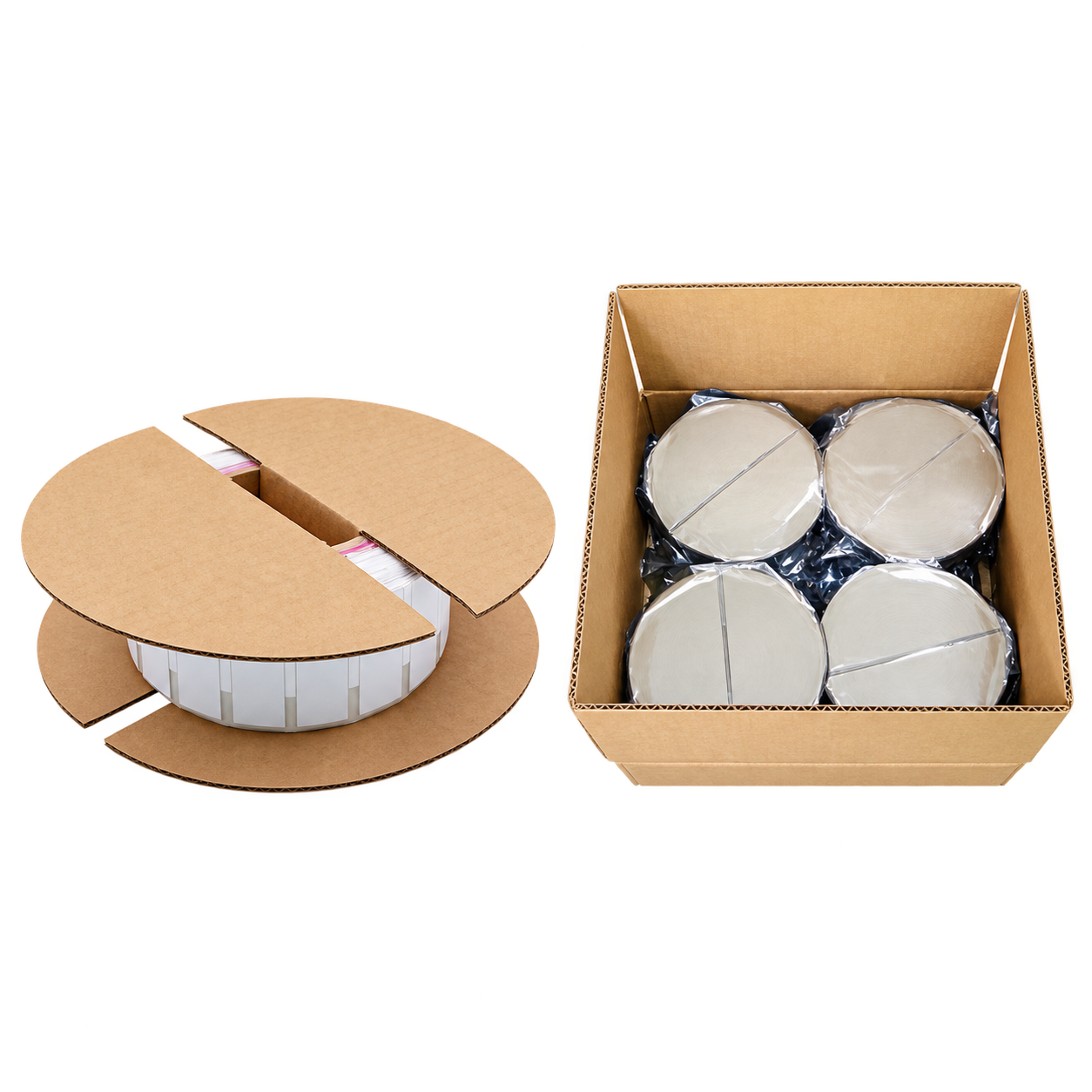

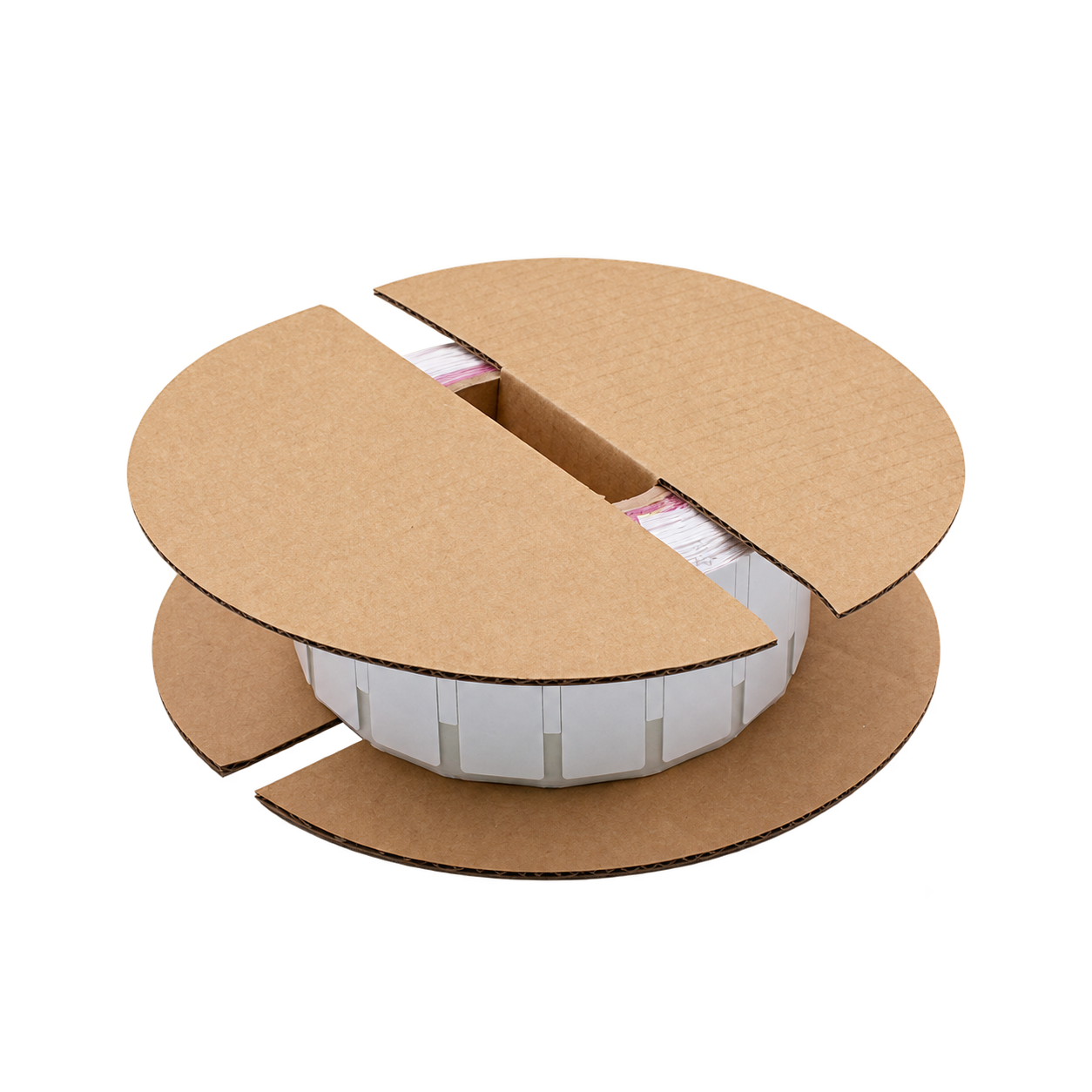

Packaging & ordering
