UHF tags · Paper stickers
G9201 UHF Paper Label
Self-adhesive passive UHF RFID paper label for inventory checking and warehouse management. Four sizes, coated paper or PP synthetic paper.
- Frequency
- 860–960 MHz
- Standard
- ISO 18000-6C (EPC Gen2)
- Chip
- Impinj R6P · NXP U8 · M4QT
- Sizes
- 44 × 18 · 73.5 × 21.2 · 100 × 25 · 100 × 50 mm
- Material
- Coated paper or PP synthetic paper
Overview
The G9201 is a self-adhesive passive UHF RFID paper label for inventory checking and warehouse management. It works at 860–960 MHz to ISO 18000-6C (EPC Gen2), with an Impinj R6P, NXP U8 or M4QT chip and an aluminum antenna.
It comes in four sizes, 44 × 18, 73.5 × 21.2, 100 × 25 and 100 × 50 mm, on coated paper or PP synthetic paper. Read range is 0–15 m, depending on tag size and reader. The chip can be rewritten 100,000 times and keeps data for 50 years.

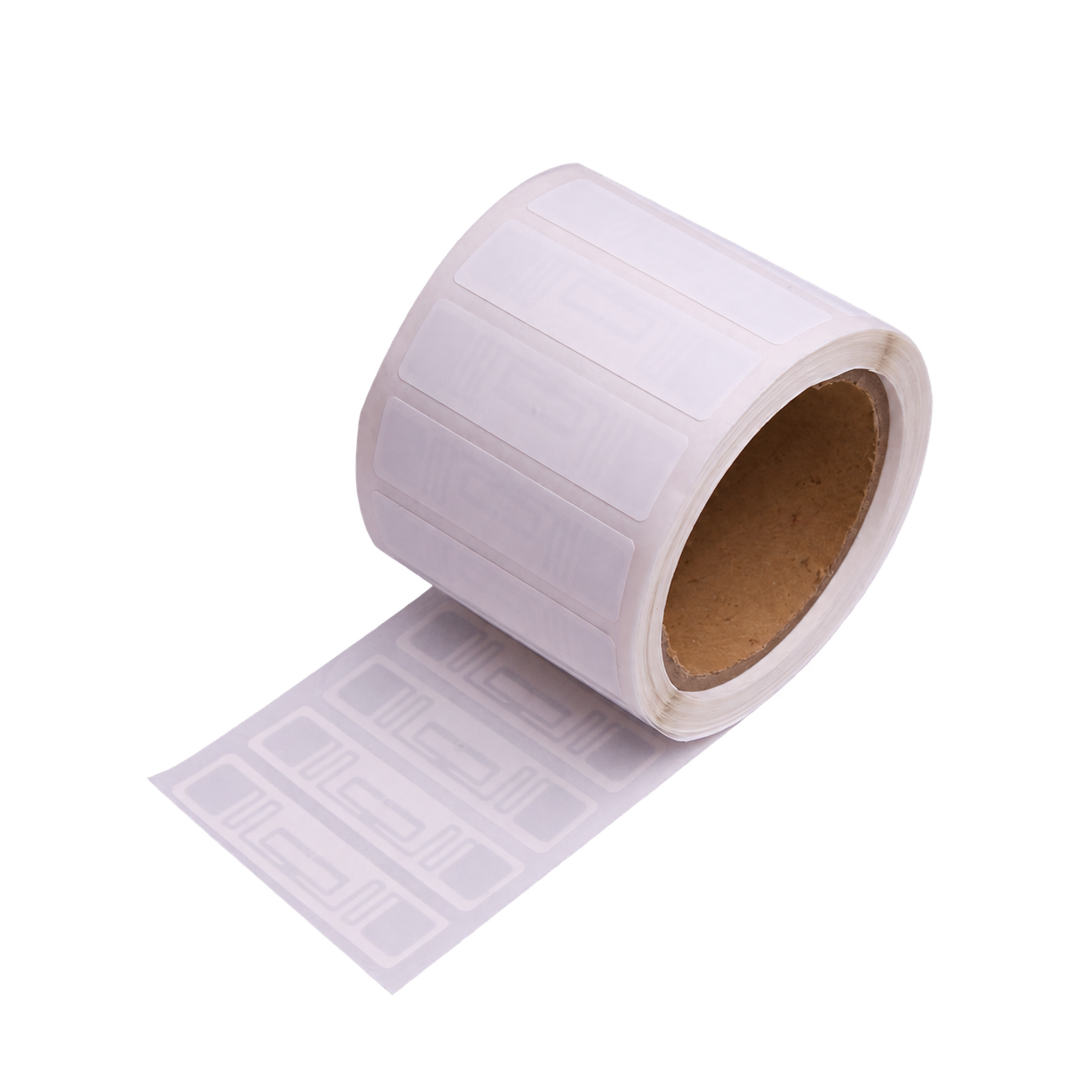

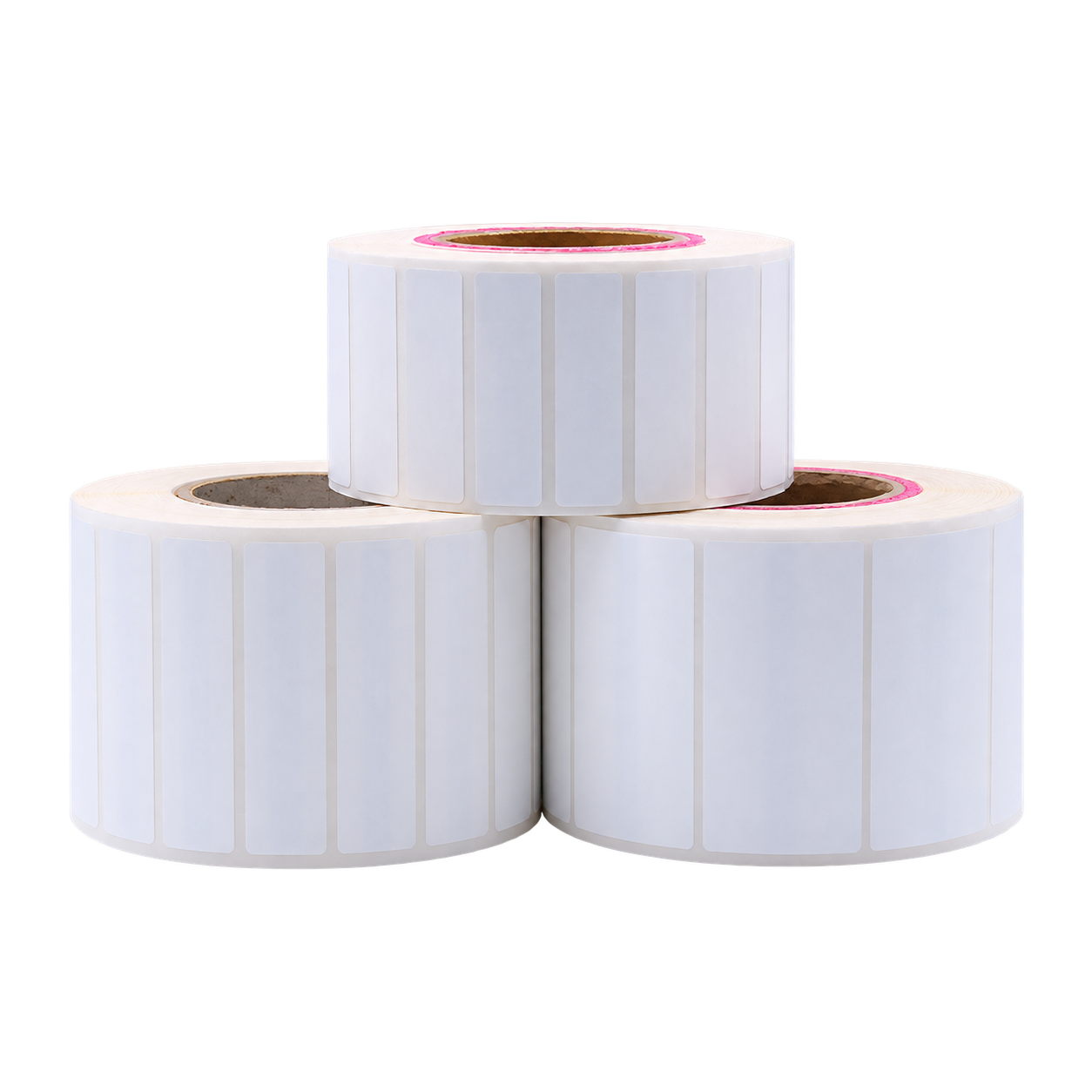

Labels are supplied on rolls of 2500, vacuum packed in ESD bags.
- Frequency
- 860–960MHz
- Read range*
- 0–15m
- Sizes
- 4
- Labels per roll
- 2500
Specifications
Performance
- Model
- G9201
- Frequency
- UHF, 860–960 MHz
- Standard
- ISO 18000-6C (EPC Gen2)
- Chip
- Impinj R6P / NXP U8 / M4QT
- Working mode
- Passive
- Read range
- 0–15 m*
- Chip lifetime
- Rewrite 100,000 times, data saved 50 years
- ESD voltage immunity
- 2000 V
Physical
- Size
- 44 × 18 mm
73.5 × 21.2 mm
100 × 25 mm
100 × 50 mm - Base material
- Coated paper or PP synthetic paper
- Antenna material
- Aluminum
- Operating temp.
- −40 °C to +70 °C, 20–90% RH non-condensing
- Storage temp.
- −25 °C to +50 °C, 20–90% RH non-condensing
Chip memory
| Chip | EPC | User | TID | Reserved |
|---|---|---|---|---|
| M4QT | 96 bits | 512 bits | 96 bits | 64 bits |
| NXP UCODE 8 | 128 bits | — | 96 bits | 64 bits |
| Impinj R6P (MR-6P) | 128 bits | 32 bits | 96 bits | 64 bits |
* Depends on tag size and reader. UCODE 8 user memory is not listed.
Sizes
Label, liner and roll dimensions.
| Size | Label | Liner width | Gap | Roll outer Ø | Core Ø |
|---|---|---|---|---|---|
| 44 × 18 mm | 44 ± 0.2 × 18 ± 0.2 mm | 55 ± 1 mm | 3.59 ± 1 mm | 155 mm | 76 mm |
| 73.5 × 21.2 mm | 73.5 × 21 ± 0.2 mm | 80 ± 1 mm | 4 ± 1 mm | 130 mm | 85 mm |
| 100 × 25 mm | 100 ± 0.2 × 25 ± 0.2 mm | 110 ± 1 mm | 4 ± 1 mm | 155 mm | 76 mm |
| 100 × 50 mm | 100 ± 0.2 × 50 ± 0.2 mm | 110 ± 1 mm | 4 ± 1 mm | 155 mm | 76 mm |
Structure & packing
Structure, top to bottom
- Face
- BW9687
- Inlay
- Chip on aluminum antenna
- Adhesive
- 915D, 20 ± 2 g/m²
- Backing
- Release liner
Packing
- Roll
- 2500 pcs, vacuum packed in ESD bag
- 1 roll / carton
- 25 × 25 × 15 cm, 2 kg
- 4 rolls / carton
- 46 × 46 × 16 cm, 8 kg
Requesting a quote
Send us these details and we'll reply with pricing and lead time.
- Size & materialOne of the 4 sizes; coated paper or PP synthetic paper
- ChipImpinj R6P, NXP U8 or M4QT
- QuantityNumber of labels or rolls
